MULTILAM 360 Dual ™

Perfing (Option)

Slitting (Option)

3-Inch

1-Inch

#DM0203  MULTILAM 360 DUAL

#DM0202  MULTILAM 460

#DM207  MULTILAM 660

#DM207ST  Optional Stand 36 - 46 - 66

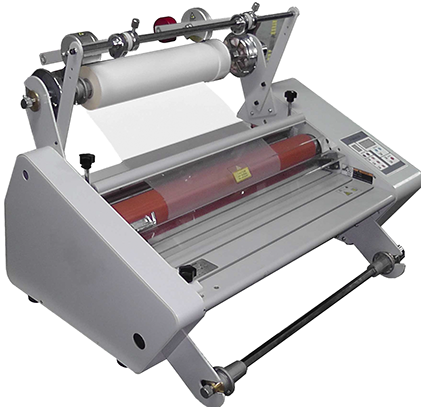

TABLE TOP LAMINATOR FOR SINGLE OR DOUBLE SIDED WORK

The MULTILAM 360 Dual series of double and single sided laminators allows you to do all possible kinds of lamination with just one ultra compact flexible machine at a really attractive price.

• Single sided thin film / thin substrate.

• Single side thin film / thicker substrate with double sided print

• Double sided thick film medium to thick substrate encapsulation

• Cold film pressure sealing

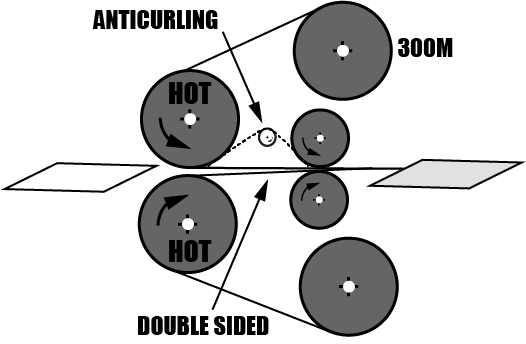

The MULTILAM 360 Dual has a totally new de-curling system with 2 distinct types of de-curler, a unique variable height rotating roller for de-curling of thicker stock with absolutely no scratching of the inner side - perfect for digital print. It also has a variable height de-curling bar for sharper de-curling of thin stock that usually can’t be de-curled properly, and a bypass for straight through flow of double sided laminate. This, coupled with the best quality of soft sili- cone rollers, will absorb any digital print height variance on the sheet and eliminate bubbling. Make no mistake - this industrial duty machine is probably the best that money can buy.

KEY FEATURES :

  • Suitable for all types of film (matt & gloss) from 25 > 250 microns
  • Spring assisted roller pressure up to 30 kg
  • Variable speed to 2,0M/min
  • Variable temp from cold to 150°C
  • Infeed width to 360mm, roll width max. 340mm
  • Adjustable infeed guide, Fully guarded infeed
  • Reverse function, 1Inch mandrel std, 2, 3 Inch optional
  • 2 roll holders for rolls up to 1000M
  • Optional high roll holder for rolls up to 3000M
  • Optional perfing and slitting blades (see pict)
  • Roller anticurling system for single sided lamination

Technical specifications:



  • Width 36 with de-curling
  • Digital control panel
  • Optimal film thickness from 20 mic bopp for single-sided

use to 200 mic pet for double-sided use

  • 2 types of de-curler fitted: roller and blade
  • Upper and lower roll holders
  • Extra high upper roll holder is suitable for jumbo rolls to ca. 30cm diameter upper, to ca. 20cm diameter lower.
  • Floating tensioner roller
  • Adjustable web tensioner brake
  • 1/3 inch mandrels on upper holder
  • Finest full conformal silicone rubber heated rolls
  • Most sensitive heat thermostat on the roller core
  • Adjustable pressure to 400N (40kgf)
  • Infinitely adjustable de-curler bar and roller
  • De-curler bypass function
  • Substrate To 2 mm
  • Warm up time Ca. 10 min
  • Temp. adjustment Cold up to 150 degrees Celsius
  • Speed adjustment From 0.3 to 2,7 m/min in 9 steps
  • Digital heat and speed display
  • Single side heat cut off switch
  • Reverse function
  • Adjustable left side lay
  • Safety cover with interlock



Options: Film trimmer-perfer rotary knives with guards,
     film cutter tool

Printfinishing made easy !
