Technical specifications:

Power : 220/240v 50hz

Dimensions : 80x80x70cm

Weight : 55kg

SINGLE SIDE and ENCAPSULATION

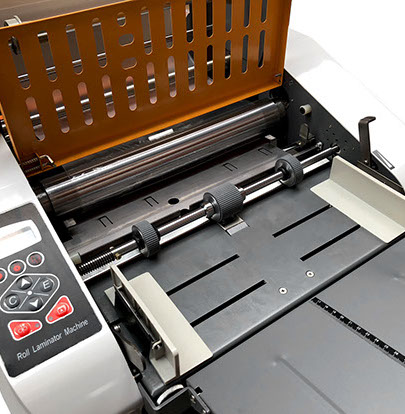

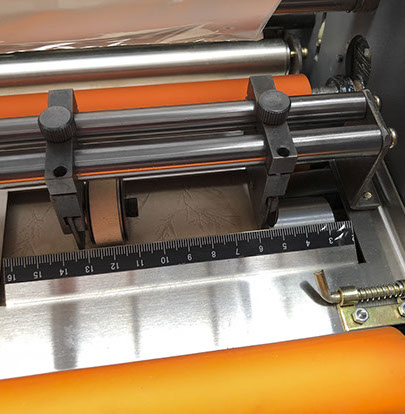

• Auto-Feed from A to A3

• Bursting process

• The fastest small format laminator to 4,8m/min at full speed*

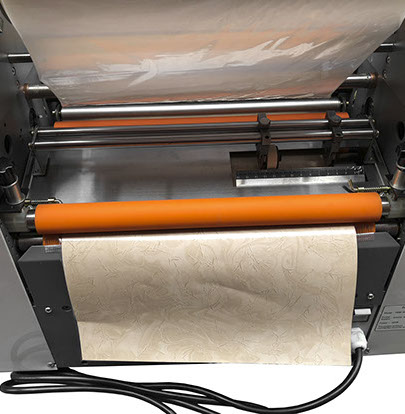

• Large diameter upper silicone roller for optimal heat transfer
   to substrate and surface heat replenishment.

• Roller soft silicone for excellent sealing.

• Both rollers are heated with a combined 1400W, the most powerful
   in its size class, which enables amazing high production speed.

• Upper and lower roll holders with 1” (25mm) mandrels + 3” (75mm).

• Space for rolls up to 20cm diameter.

• Suitable for gloss and matt films from 30 to 250 micron

• Digital speed and temp control to 150°C.

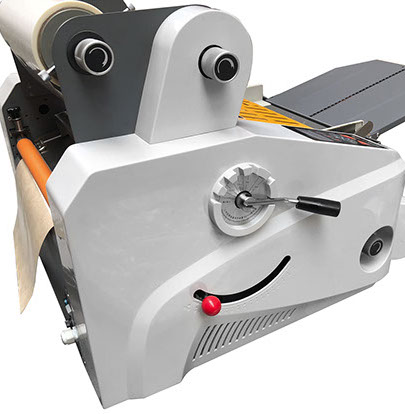

• Dual spring hot and traction roller lever with 5 pressure positions.

• Fully open roll gap to 5mm for board substrates.

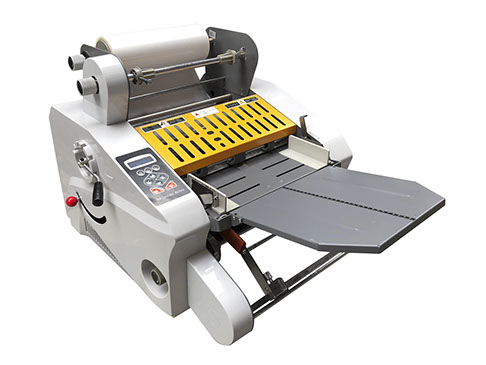

#DM0350AF  MULTILAM 350 AF
