Linear Tools

KEY FEATURES :

• Infeed width to 330x450mm long (option to 650mm)
• 1 sec process time on A4 sheet with 1 crease S.E.F
• Processes card from 90gsm equivalent to 350gsm equivalent
• 12 programmable lines with min. 1mm spacing and 1.2mm
  crease line
• Digital colour TFT display with all data visible in one glance
• Process diagram is shown on the screen (what you see is what you get)

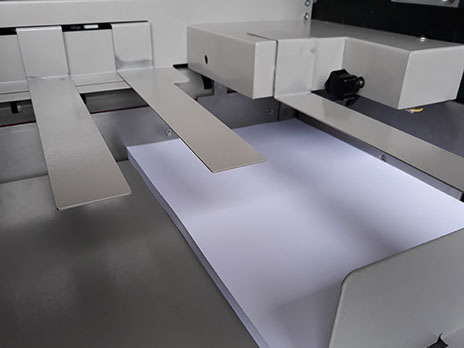

• Outfeed tray with magnetic guides and stops
• Position accuracy to 0.2mm
• Amazing small footprint: base only 600x600mm; plus 500mm for outfeed tray

options

• Cross perfing bar 24 tpi to approx 180gsm card
• Linear perfing tools set to approx 240gsm card (up to 4 fittable with 24 mm line spacing)

variants

• Linear perfing 24tpi or 12tpi
• Linear  full slitting
• Linear scoring 1.2mm line
• Trays
• SRA3 long infeed tray extension
• 650mm ultra long tray extension

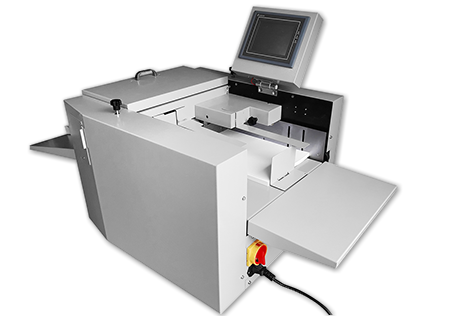

#DM0130  MULTIAIR advanced



OPTION :

#DM0130LT  LONG TRAY

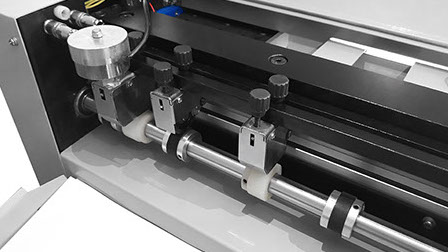

LINEAR TOOLS

#DM0102PW12  PERF WHEEL SET

#DM0102PW24  PERF WHEEL SET

#DM0102SL SLIT WHEEL SET

#DM0102ST SCORE WHEEL SET



#DM0102PB CROSS PERF BAR 24tpi
