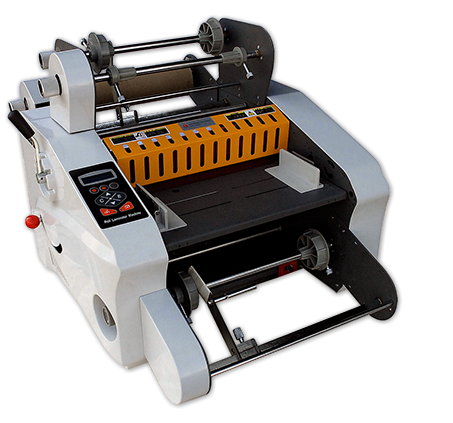

MULTILAM 350 RW Dual

SHEENING

GUILDING UV

Perfing Wheel

Cross Cutter

Cooling Fans

SHEENING LAMINATOR

  • Perfect for hot and cold lamination where bar anticurling and / or rewinding is required.
  • Same basic specs as MULTILAM linear model but with extra options.
  • Anticurling by variable height bar.
  • Rewinding of film or paper backing.
  • Super transfer lamination of spot gold/metallic foil, spot UV effect, matt black effect, hologram effect, sparkle effect using suitable transfer films.
  • The fastest small format laminator to 4,8m/min at full speed*
  • Large diameter upper silicone roller for optimal heat transfer to substrate and surface heat replenishment.
  • Roller soft silicone for excellent sealing.
  • Both rollers are heated with a combined 1400W, the most powerful in its size class, which enables amazing high production speed.
  • Upper and lower roll holders with 1” (25mm) mandrels.
  • Space for rolls up to 20cm diameter.
  • Suitable for gloss and matt films from 30 to 250 micron
  • Digital speed and temp control.
  • Dual spring hot and traction roller lever with 5 pressure positions.
  • Fully open roll gap to 5mm for board substrates.

Technical specifications:



Power : 220/240v 50hz

Dimensions : 70x80x70cm

#DM0350RW  MULTILAM 350 RW DUAL

Anti-curling System

Pressure Lever

Click to view the video.
