LIGHTNING

Long Tray
Option

Tear Off
Corner Tickets !

Cross Bar Perf

 included

Feedin Tray

Strike perfs heads

Crossing Bar

Perfing Bar

LIGHTNING

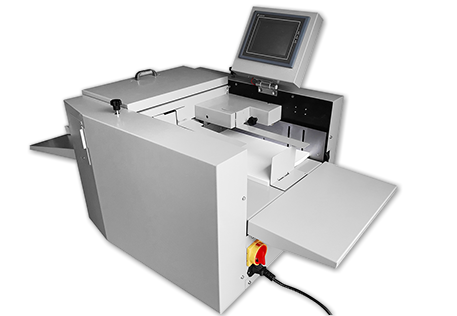

LIGHTNING Auto Ffeed

in the smallest space imaginable a fully auto feeding automatic Creaser/Perforator at less cost than most manual machines !

KEY FEATURES :

  • Infeed width to 330x450mm long (option to 650mm)
  • 1 sec process time on A4 sheet with 1 crease S.E.F
  • Processes card from 90gsm equivalent to 350gsm equivalent
  • 12 programmable lines with min. 1mm spacing and 1.2mm
    crease line
  • Digital colour TFT display with all data visible in one glance

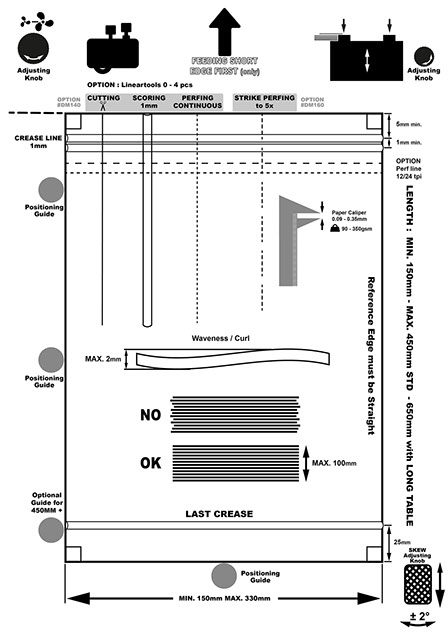

  • Process diagram is shown on the screen (what you see is what you get)
  • Outfeed tray with magnetic guides and stops
  • Position accuracy to 0.2mm
  • Amazing small footprint: base only 600x600mm; plus 500mm for outfeed tray
  • 1 to 2 Programmable strike perf channels with 52mm min line spacing and 5mm min step (option)
  • Up to 4 strikes Sequences / Channel

options

  • Cross perfing bar 24 tpi to approx 180gsm card
  • Linear perfing tools set to approx 240gsm card (up to 4 fittable with 24 mm line spacing)

variants

  • Linear perfing 24tpi or 12tpi
  • Linear  full slitting
  • Linear scoring 1.2mm line
  • Trays
  • SRA3 long infeed tray extension
  • 650mm ultra long tray extension

#DM0130  iCREASE-MULTI



OPTION :

#DM0130LT  LONG TRAY



LINEAR TOOLS

#DM0102PW12  PERF WHEEL SET

#DM0102PW24  PERF WHEEL SET

#DM0102SL SLIT WHEEL SET

#DM0102ST SCORE WHEEL SET



#DM0102PB CROSS PERF BAR 24tpi













Technical specifications:



  • Dimensions : 65x65x65cm
  • Power supply :  220V, 50hz, 1.5amp with ground line
  • Weight : 50 kg
  • Triwall carton  Ca. 65kg
  • Packed gross weight

Printfinishing made easy !
