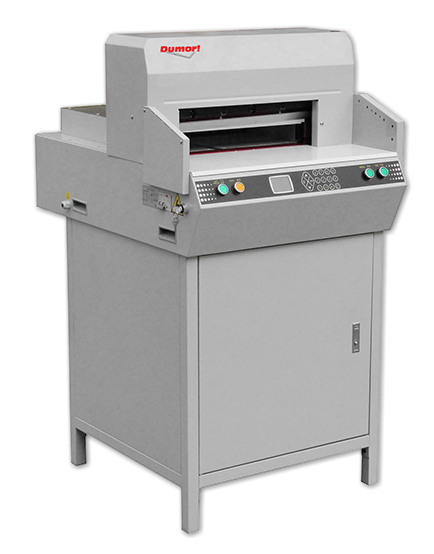

EASYCUT 46 ™

Heavy Duty Chassis Electrical Press

THE WORLD’S MOST ADVANCED 460MM ELECTRICALLY POWERED GUILLOTINE AT THE WORLD’S BEST PRICE

The totally new EASYCUT 46 cutter offers copyshops all the features previously found only on very large professional machines that cost 1000’s more. Compare with the others: full 46cm cutting table depth, others offer only 35cm, extra deep 23cm front table for cutting longer sheets, others offer only 15cm, electrically powered paper press, no more sheet slippage when cutting glossy paper, other use a manual press or weak springs, deepest cutting depth in its class up to 5cm, other have only 3 or 4cm depth, servo controlled backguage with 92 programs, with push out function! Others have only manual backguage settings. HSS knife*, more than 12000 cutting cycles before regrinds! Full LCD display with keyboard! Others only offer no display at all or as an expensive option. Overhanging front guard for extra long paper. *HSS knife optional.

KEY FEATURES :

  • Front table 230 mm deep
  • Pile to 45mm
  • Last cut 30mm
  • 80 programs
  • Paper to SRA3, rear table 455x460mm
  • 80 steps per program perfect for repeat cuts eg visit cards,

photos, comp slips etc

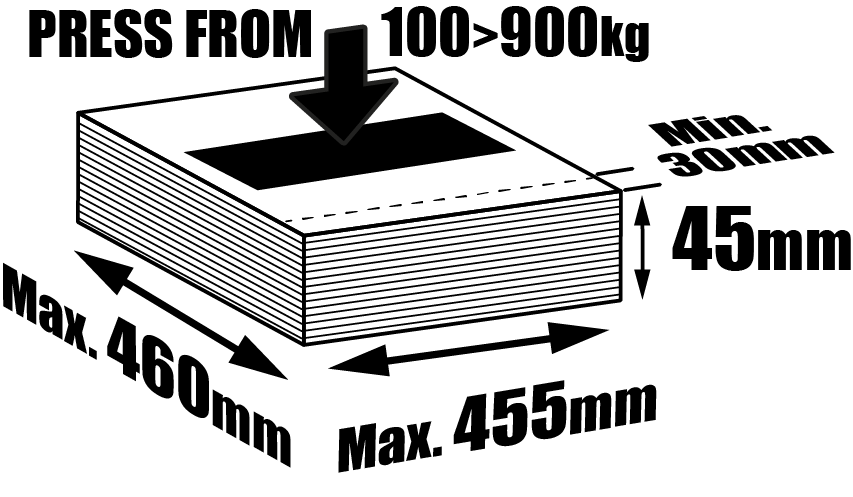

  • Programmable electric press from 100 kgf to 900kgf,

(will not damage paper)

  • Swing cut for better cut accuracy
  • Option: Magnetic false clamp plate for delicate paper
  • Backguage accuracy 0.2 mm
  • LCD display with rolling data
  • Blade made from long life steel (HSS) lasts 6 times longer

and can be reground up to 8 times

  • Stick can be re used up to 8 times
  • Keyboard re-settable backguage origin
  • Blade overrun interlock
  • Security: IR guarded and Overload cutout security

#DM0450  EASYCUT 46



#DM0450BL BLADE

#DM0450ST STICK

Technical specifications:



  • Cutting width to 45,5 cm
  • Cutting length to 46 cm behind the blade plus up to 23 cm
  • in front of the blade Cut pile depth max 5 cm
  • Min cut length 5 cm
  • Min recommended cut step 1 mm
  • Backguage accuracy when new better than 0.2 mm on push out
  • Paper press pressure up to 15000N.
  • Illuminated cut line
  • Blade drive system heavy duty electric
  • Press drive system heavy duty electric with separate motor and drive (not springs!)
  • Backguage drive system by hi accuracy servomotor, full push out in about 6 sec.

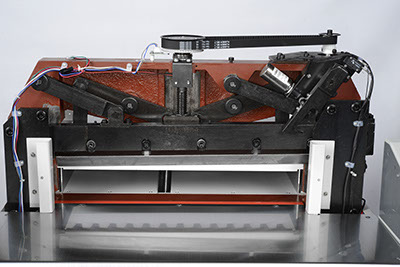

  • Upper frame, blade carrier, press bar and backguage made from heavy cast iron, annealed and machined.
  • Lower body and cupboard made from tubular and sheet steel, powder coated.

Dimensions:

Table working height : 900 mm approx

Overall height : 1300 mm

Depth : 760 mm

Width : 660 mm

Weight : 120 kg



Options: Casters and HSS blade

Click to download the Product Sheet.

Click to download the user Manual.

Click to view the video.
